1. introductions

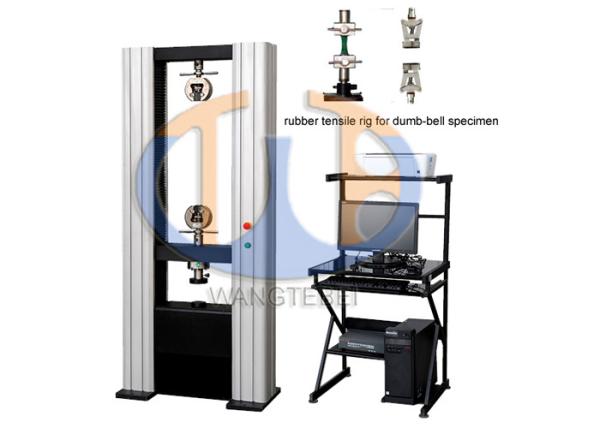

This rubber tensile stress-strain testing machine is to measure and
determine tensile strength, elongation at break, stress at a given
elongation, elongation at a given stress, stress at yield and
elongation at yield for vulcanized and thermoplastic rubber.
2. test specimen
Dumb-bells or rings specimen can be used to determine the above
properties and dumb-bells are preferable.
Dumb-bell test specimen have the following outline:
Standard thickness of the narrow portion shall be 2±0.2mm for types
1, 2,3 and 1±0.1mm for type 4.
Test length of the specimen see following table:
| Type of test piece | Type 1 | Type 2 | Type 3 | Type 4 |
| Test length(mm) | 25±0.5 | 20±0.5 | 10±0.5 | 10±0.5 |
3. test speed
100mm/min, 200mm/min and 500mm/min. This test machine can set test
speed from 0.01mm/min to 500mm/min freely.
4. specification of testing machine
| No. | Inspection items | Technical specifications |
| 1 | Max. load | 10KN |
| 2 | Measuring range of load | 1%-100%FS |
| 3 | Relative error of indicating value | ±1% |
| 4 | Load resolution | 1/300000F.S |
| 5 | Measuring range of deformation | 2%-100% |
| 6 | Relative error of deformation value | ±1% |
| 7 | Force loading speed | 0.01-50KN/s |
| 8 | Displacement speed | 0.01-500mm/min |
| 9 | Displacement resolution | 0.001mm |
| 10 | Max. stroke of crossbeam | 1090mm |
| 11 | Effective tensile height(distance between metal tensile grips) | 700mm (for specimen with large elongation, the tensile height can
be higher) |
| 12 | Distance between two columns | 400mm |
| 13 | Diameter of upper and lower platens | 80mm |
| 14 | Jaws for flat specimen | 0-7mm |
| 15 | Jaws for round specimen | Dia. 4-9mm |
| 16 | Loading mode | Electrically loading |
| 17 | Control mode | Computer control |
| 18 | Power supply (with grounded protective measures) | 220VAC,1kW |
| 19 | Dim. Of loading frame | 790x430x1860mm |
| 20 | Net weight of loading frame | About 400kg |
5. software introduction
- Easy to control and friendly interface
windows based interface, easy and fast to reach different
functions, suitable for most of operators using habits. Integrated
all common operation functions, like specimen information input,
specimen choosing, curve plotting, data display, data process, data
analysis, test operation etc., easy and convenient to operate.
- Full digital display and computer control
Adopting remote controller, fast response and reliable to parameter
gathering. Realize digital adjustment and zeroing of load,
deformation and displacement as well as PID parameter adjusting.
- Different control mode & speed setting
- Programmable control mode
Users can program test mode according to their own requirements.
- Load holding facility for a specific period:
- Report is editable
6. packing list
| NO. | Content | Qty |
1
| Load frame(two columns type) 10KN Baking finish cover with streamline design High intensity testing machine structure and crosshead, high
stiffness to assure accuracy | 1 set |
| 2 | AC Servo speed adjusting motor and driver | 1set |
| 3 | Load cell Capacity: 10KN |
1 pc. |
| 4 | Tensile test attachment Jaws for flat specimen 0-7mm Jaws for round specimen: Dia.4-9mm, |
1 set 1 set |
| 5 | Compression test attachment Dia.80mm | 1 set |
| 6 | Lenovo computer | 1set |
7. relative product
Dies and cutters
