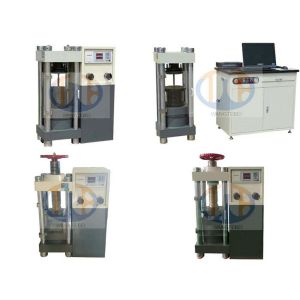

Hydraulic Concrete Testing Machine For Industrial And Mining Enterprises

1. introduction

This compression testing machine is suitable for compression strength test of cement, concrete, brick, etc. And if equipped with suitable test fixtures, it can make test of splitting tensile test, flexural and bending test, static elastic modulus test etc.

Compression and upset test for metal materials can be completed on this compression testing machine. And more than one displacement or deformation measuring device can be equipped for requirement. It is the very testing machine for scientific research institutions, cement quality control, industrial and mining enterprises, etc.

2. Specification

No.	Product name	Computer control concrete compression testing machine
1	Model	YAW-2000	YAW-3000
2	Max. capacity	2000KN	3000KN
3	Force measuring range	2%-100%FS
4	Relative error of test force	≤±1%
5	Ball screw adjusting mode	Electrical
6	Size of upper and lower compression plate	370x370mm	400x500mm
7	Max. distance between upper and lower compression plate	330mm	500mm
8	Max. stroke of piston	100mm	150mm
9	Piston diameter	310mm	400mm
10	Rated pressure of oil pump	40Mpa
11	Power	3 phase 1.1kW
12	Dimension	700x700x1600mm	800x800x1800mm
13	Weight	1600kg	2300kg

Why choose us?

1) Machine's quality,if you want to choose a cheap testing ma chine Maybe the quality is too bad .And you must buy the other one after you use it for a period of the time.This situation will influence your production.So the quality of the machine is so important than others.

2) Many times after-sales service is very important too.Good after-sales service representative the image of the company .After you use the machine and find some problem of machine in some respect.A good after-sales can dealing with it effectively and protect the rights of consumers.

3) The third is technical support. Because of time difference,When you need help,other place maybe is sleeping. So the effectively contact information and serve is also useful to you.

4) The last is company. In order to ensure their image, good reputation company will produce good machine.
